Water Structures
Geomembrane lining for ponds, lakes and reservoirs — containment that holds water where it should be, permanently.
One System, Built to Work Together.
Artificial lakes, irrigation ponds and reservoirs live or die by their lining. Exposed to water on one side and ground movement on the other, the geomembrane must stay watertight across thousands of square metres.
PVC geomembranes welded on site form continuous liners over prepared earthworks, with anchoring and ballast engineered for the water loads and the local ground.
- Irrigation ponds and canals
- Artificial lakes and lagoons
- Aquaculture basins
- Reservoirs and water storage
- Decorative water features
Layer by Layer.
- 01
Earthworks & Grading
The basin is shaped, compacted and cleared of anything that could puncture the liner.
- 02
Compacted Base
A fine, compacted bedding layer gives the liner uniform support.
- 03
Protection Fleece
Geotextile cushions the membrane from the ground beneath.
- 04
PVC Geomembrane
The welded waterproof liner — the heart of the containment.
- 05
Anchoring & Ballast
Perimeter trenches and ballast lock the liner against wind, waves and buoyancy.
01Absolute Containment
Welded geomembranes hold water with essentially zero seepage across the basin.
02Moves with the Ground
Flexible liners absorb settlement and thermal movement without cracking.
03Safe for Stock & Crops
Inert linings suit aquaculture and irrigation without leaching into the water.
04Rapid Large-Area Lining
Wide rolls and site welding line hectares of basin in days, not months.
Common questions about this system.
Where is the Water Structures system used?
It is typically used for irrigation ponds and canals, artificial lakes and lagoons, aquaculture basins, reservoirs and water storage and decorative water features.
Which Insutech products are used for water structures?

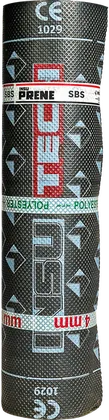

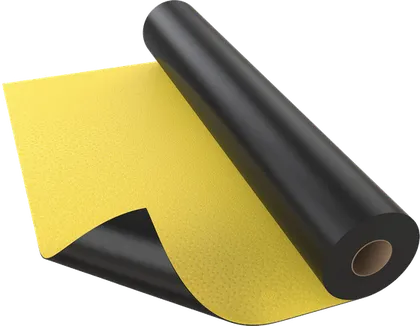

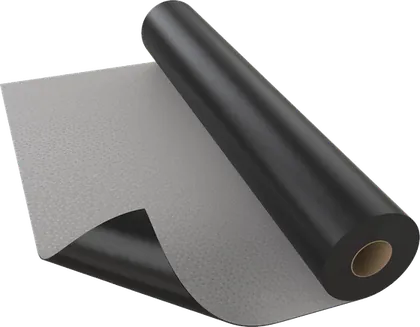

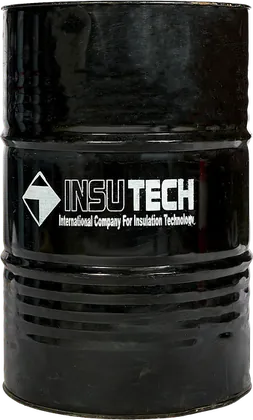

The recommended system is built with PVC SE — Exposed Roofing, InsuPrene, TPO/FPO Roofing Membrane, PVC BAT — Basements and Insuseal — full details for each are on the recommended products cards on this page.
How is the system installed?
The system is installed in 5 stages: earthworks & Grading, compacted Base, protection Fleece, PVC Geomembrane and anchoring & Ballast. The system build-up section on this page illustrates the full sequence.
What are the main advantages of the water structures system?
The key advantages are absolute Containment, moves with the Ground and safe for Stock & Crops — each is explained in the Key Benefits section on this page.
