Garden & Green Roof
A rooftop landscape over an anti-root waterproofing system — soil, planting and drainage working safely above the structure.
One System, Built to Work Together.
Green roofs put living landscape on top of the building — which means constant moisture, and roots that actively attack whatever they can reach. The waterproofing layer must resist root penetration for the life of the roof.
Insutech Anti Root membranes are compounded specifically to stop root ingress, working under a drainage and filtration build-up that keeps the soil healthy and the structure dry.
- Rooftop gardens and terraces
- Podium landscaping over structures
- Planter boxes and raised beds
- Green facades and courtyard decks
- Eco-certified and sustainable buildings
See the System in Action.

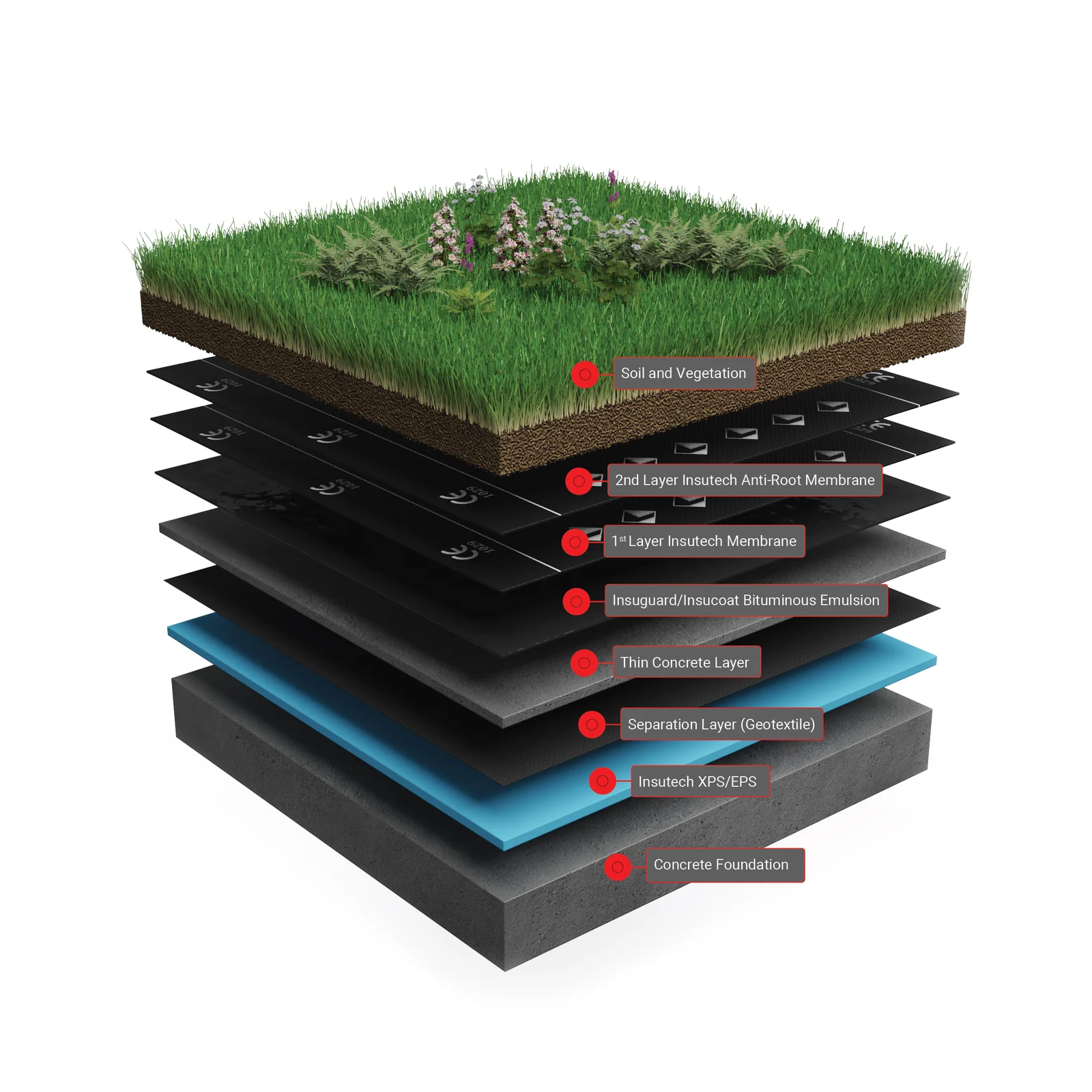

Layer by Layer.
- 01
Substrate Preparation
The deck is cleaned, repaired and screeded to falls toward the drainage outlets.
- 02
Bituminous Primer
A primer coat ensures full adhesion of the first membrane layer to the deck.
- 03
Base Membrane Layer
A plain-finish membrane torch-applied as the first waterproofing layer.
- 04
Anti-Root Cap Layer
Anti Root APP or SBS membrane stops root penetration at the waterproofing line.
- 05
Protection & Drainage
Protection board plus a drainage layer carry excess water safely to the outlets.
- 06
Soil & Filtration
A filter fleece and growing medium sized to the planting design.
- 07
Planting
From sedum carpets to shrubs and trees, planted into the finished build-up.
01Roots Stopped Cold
Anti-root compounded membranes prevent penetration at the source — no root barriers bolted on as an afterthought.
02Constant-Moisture Rated
The system lives under damp soil year-round and is built for permanently wet service.
03Cooler, Greener Buildings
Planted roofs insulate the structure, cut cooling loads and reclaim usable space.
04Full System from One Source
Membranes, protection and coatings arrive as one compatible, warrantable build-up.
Common questions about this system.
Where is the Garden & Green Roof system used?
It is typically used for rooftop gardens and terraces, podium landscaping over structures, planter boxes and raised beds, green facades and courtyard decks and eco-certified and sustainable buildings.
Which Insutech products are used for garden & green roof?
The recommended system is built with Anti Root APP, Anti Root SBS, Insuboard Protection Board and InsuGuard Rubber Base — full details for each are on the recommended products cards on this page.
How is the system installed?
The system is installed in 7 stages: substrate Preparation, bituminous Primer, base Membrane Layer, anti-Root Cap Layer, protection & Drainage, soil & Filtration and planting. The system build-up section on this page illustrates the full sequence. An application video is also available above.
What are the main advantages of the garden & green roof system?
The key advantages are roots Stopped Cold, constant-Moisture Rated and cooler, Greener Buildings — each is explained in the Key Benefits section on this page.
